Technical Specification
Strip Steel Thickness 0.13—0.6mm
Strip Steel Width 700-1250mm
Coil Inner Diameter φ508/φ610
Coil Outer Diameter Max.φ1500mm Minφ 800mm
Coil Weight MAX.10t
Process Parameters
Maximum Process Speed 180m/min
Galvanized Coat Thickness 15-100g/m²(GL)
Product Level SQ/CQ/DQ/HSLA
Surface Treatment common spangles, common chromating

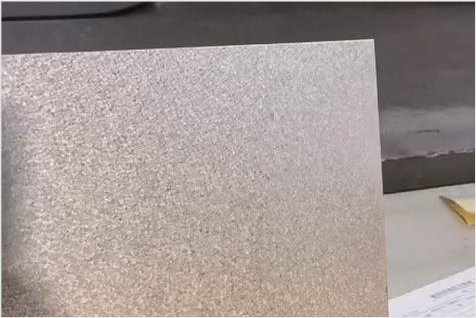

Spangled galvanizing steel sheet/strip
The annual output 200,000 tons continuous adopts advanced Sendzimir process; The Annealing furnace adopts domestically advanced Self-
designed full radiation tube heating, adopts ceramics inductor heating zinc pot equipped ,with special-purpose air knife, it is a cold and hot base line.
